Leaf images

Overview

Label image provides the users for option to insert image for each tree branch label. The users can provide the URL for the image to be used in the dataset file. The file consist of:

  • Leaf name
  • src of the image. The default value is an test image from Evolview. The image source should be a working URL of the image.

Here is the Quick example:

Supported Key-Value pairs

Key (case insensitive) Value Description
!showLeafLabel 0 or 1 Mandatory parameter. Show or hide the default leaf label names along with the images based on true or false flag.
src image source URL Mandatory parameter.
width integer/number value optional parameter to set size of the inserted image
height integer /number value optional parameter to set size of the inserted image

Tree

(A:0.1,(B:0.2,(C:0.3,D:0.4)100:0.05)100:0.1)90:0.43;
Example

Example 1

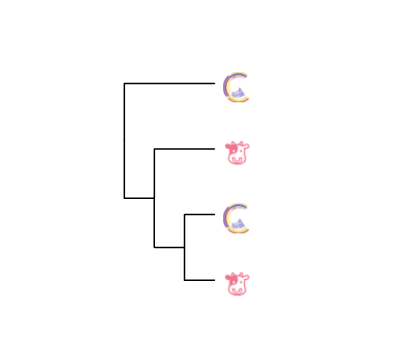

NOTE: when src is left empty, default image is used by Evolview.

Placeholder

!showLeafLabel	0
A	src=https://evolgenius.info/pics/logo_.png
B	src=
C	src=https://evolgenius.info/pics/logo_.png
D	src=
Example

Example 2

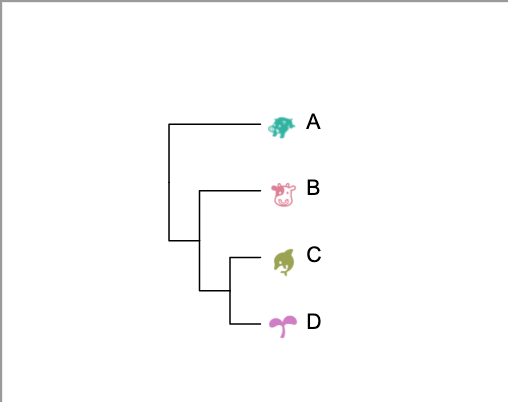

We support some default inbuilt images for testing and trial purposes. users can use these to check the insert image label option along with the trees.

Placeholder

!showLeafLabel	1
A	src=1
B	src=0
C	src=2
D	src=4
Example

Example 2

To hide the leaf label text , use !showLeafLabel identifier.

Placeholder

!showLeafLabel	0
A	src=1
B	src=0
C	src=2
D	src=4
