Overview

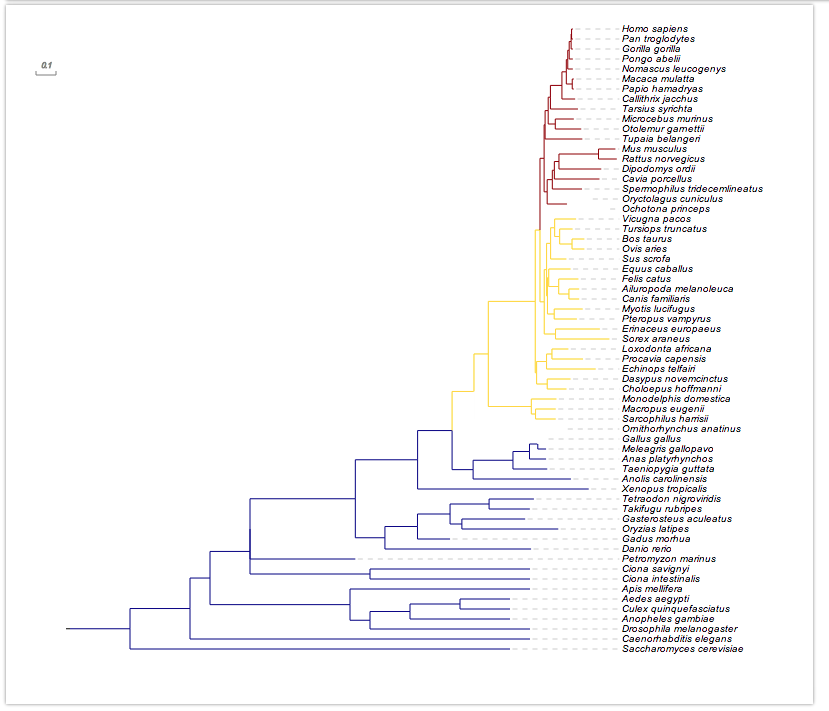

Branch colors will be applied to tree branches. Similar to pie charts, multiple datasets for branch colors can be uploaded to a tree, but only one can be shown at a time.

Tip

notes on preparing your dataset!!Data are usually tab-delimited three-column texts, with the third column optional

  • first column: the location the first column dictates where the data to be plotted. It usually contains the name of a leaf node, or two leaf names separated by a ','.
  • one single leaf name dictates that the data will be plotted on / next to / under the leaf or the branch connecting directly to the leaf node
  • two leaf names, on the other hand, dictates that the data will be displayed on the branch representing the last common ancestor of the two leaf nodes

Tree

(chicken,((mouse,rat),(chimp,human)));

For example:

1.first column: the location the first column dictates where the data to be plotted

chicken
mouse,human

2.second column: color to be applied:

chicken	green
mouse,human	blue

3.third column: optional commands to change the default behavior of current line

By default, the color will only apply to the specified branch; for example:

## branch color/ styles
human	red

By adding a third column, the default behavior can be changed. Here is a list of choices of this column:

Option (case insensitive) Description
ad apply color to all descendants
prefix apply color to all branches connecting leaf nodes whose name starts with the string specified by the first column
suffix apply color to all branches connecting leaf nodes whose name ends with the string specified by the first column
anywhere apply color to all branches connecting leaf nodes whose name contains the string specified by the first column
toroot apply color to all branches connecting the leaf node and parent nodes all the way to the root
Example

Example 1

Placeholder

## branch color
human,mouse	red	ad
Example

Example 2

Placeholder

ch	red	prefix
Example

Example 3

Placeholder

n	red	prefix
Example

Example 4

Placeholder

##barplots
## branch color from specified leaf node to the root
human	red	toroot
